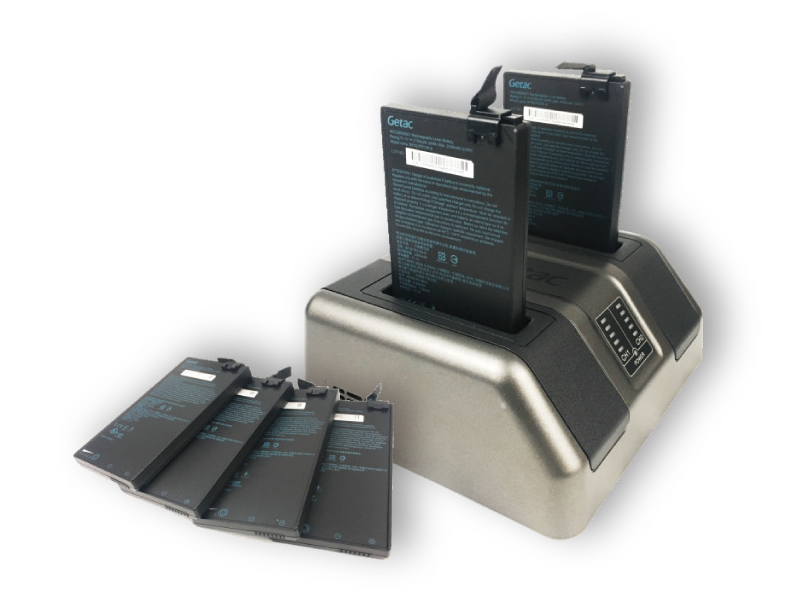

The eddy current spot weld inspection host has a battery standby time of over 12 hours. It comes standard with four lithium batteries for the industrial-grade laptop, along with a battery charging dock, enabling full-day testing without the need for an external power source or shutting down the system to replace batteries.
Technical Innovations
Eddy current technology: Directly analyzes changes in the weld spot material after welding, offering a high detection rate for weak or incomplete welds.

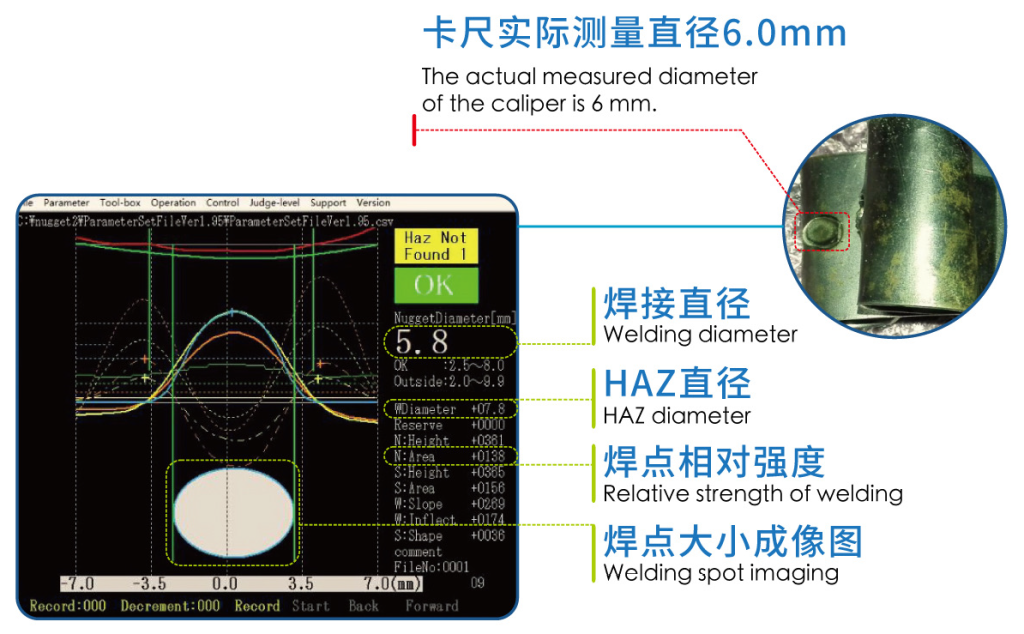

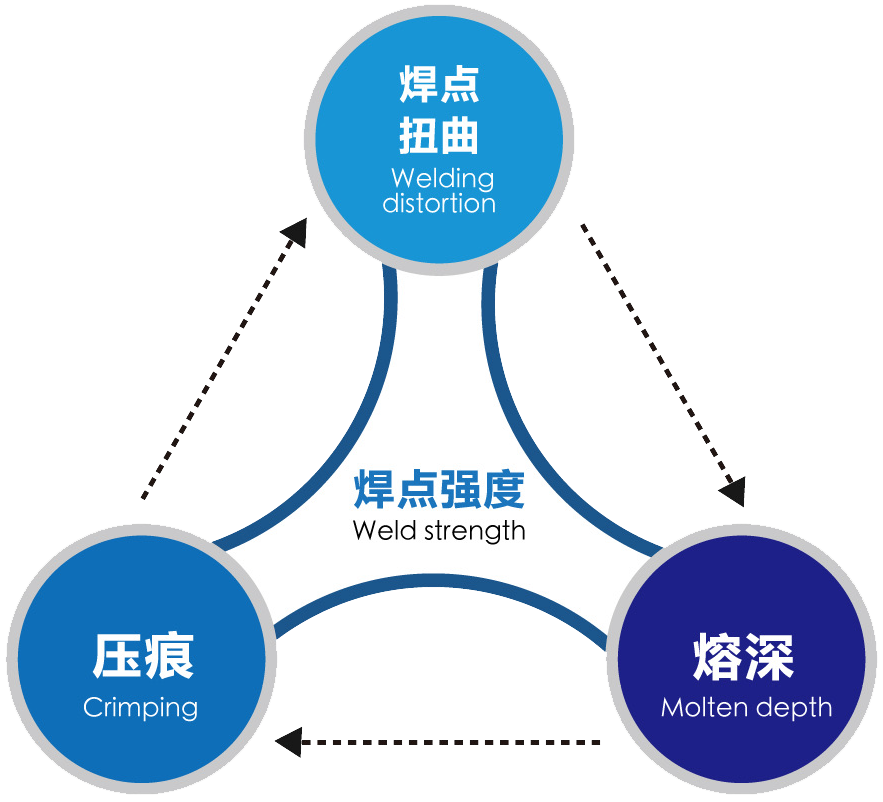

Data quantification: Direct calculation of the nugget diameter, heat-affected zone diameter, and relative weld spot strength.
Electromagnetic induction technology: No need to apply any intermediary substances, such as coupling agents or grease, on the weld spot surface during detection.
Technical Highlights
No coupling agent is required
Lower costs
Remote Monitoring
Accurate discrimination
Automated inspection
Data Quantification
Principle Explanation
By using electromagnetic induction, the system determines the actual size of the weld nugget. In non-nugget areas, electromagnetic resistance drops sharply, indicating incomplete welds.
Quantified Data

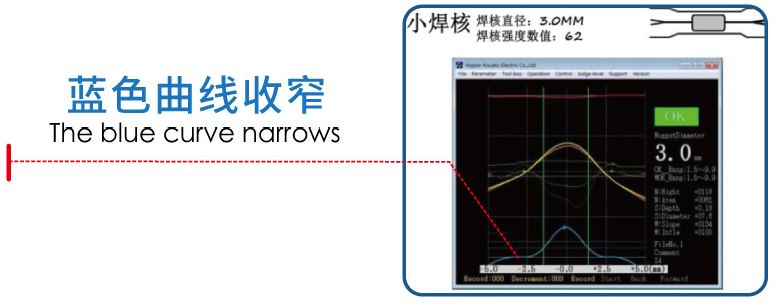

The instrument analyzes the area of the blue curve and uses calculations to determine the diameter of the weld nugget and the relative strength of the weld.
Technical Parameters

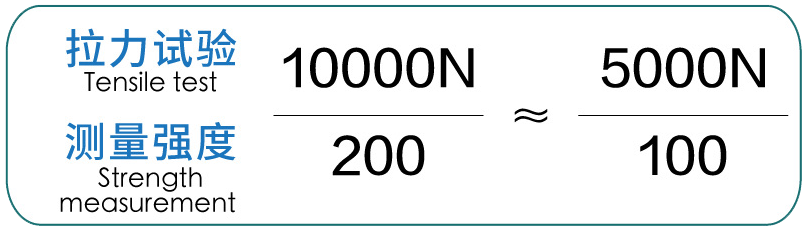

Weld strength data can only be compared within the same sheet thickness combination; different thickness combinations cannot be cross-validated.
The final assessment of weld quality is based on tensile strength measurements, providing customers with the ultimate quality judgment.
ITEM SPECIFICATIONS
Material
CPU
Graphics Card
Memory
Hard drive
Display
Security Features
Power supply
Dimensions
Weight
Operation system
Rugged Features
Environmental Specifications
Accessories
MODEL: V11
Magnesium alloy
Intel® Core™ i5-6200U (Base frequency 2.3GHz)
Intel® HD Graphics 520
Intel® HD Graphics 520 4GB DDR4
500GB SSD
11.6 ” LumiBond® capacitive multi-touch screen
Optional Intel vPro technology
TPM 2.0 security chip
Optional RFID and contactless smart card reader
Power converter (65W, 100-240VAC, 50/60Hz), 100V~240V AC, 50Hz/60Hz
Smart lithium battery (11.1V 2100mAh) x4 (battery time up to 13 hours)
316×237×71mm (width x height x depth)
About 1.98 kg
Genuine Windows 10/7
Certified to MIL-STD-810G and IP65 military standards,
aMIL-STD-461F certified
Temperature: Computer/-21°C to 60°C; Eddy current host/-10°C to 50°C.Humidity: 95% RH, non-condensing
Protective case, multi-slot charger, power adapter, hard handle, side shoulder strap, 4 batteries, hard protective box
